Showroom Chodthanawat 1 Debaratana KM.1

Projects

Project infomation

Warehouse Space : 650 - 800 Sq.m.
Office Space : 100 - 300 Sq.m.
Structure :

2-level reinforced concrete in Workshop

Showroom / office height 3.5 – 4 meters, Service Center 7.5 meters

Roof : Aluzinc with ventilation system.
Ceiling : T-bar (ventilated service center)
Wall :

Interior : concrete block 4", gouged wall (painted).

Exterior : concrete block 4", cement-coated.

Floor :

Showroom / Office: rubber tile with live load up to 300 kg/sq.m.

Warehouse: cement screed with live load up to 2 tons/sq.m.

Door - Window : Transparent glass, aluminum frame, painted steel.
Service Center Door : Roller shutter, width 4.5 x 4.5 m.
Electricity  : 30 Amp (3 phases, 4 wires) High Bay light.
Fire Protection System : Fire protection system based on standard of building.
Parking Space : In front of building (available for trailer).
Road in Area : Concrete road, width 10 - 15 m. for container vehicles.

Facilities and services

  • cover

    CCTV Surveillance System

  • cover

    Security System

  • cover

    Electricity

  • cover

    Water Supply System

  • cover

    Drainage System

  • cover

    Local Road in the Project

  • cover

    Cleaning System

  • cover

    Building Maintenance System

  • cover

    Fire Protection System

  • cover

    Landscape and Environment

  • cover

    System to Control Insect, Termite, Rat, and Other Carriers

  • cover

    Telecommunication

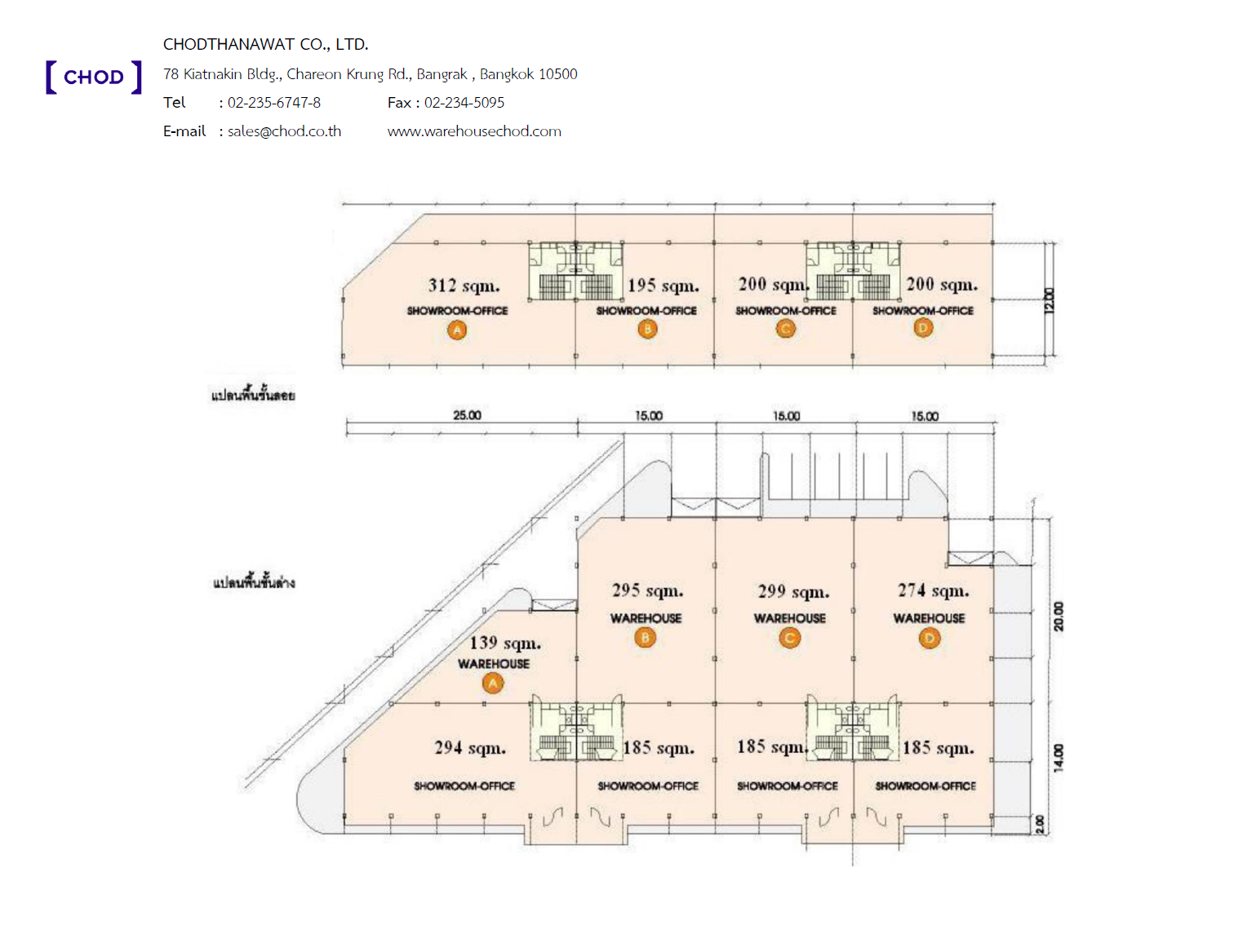

Project plan
